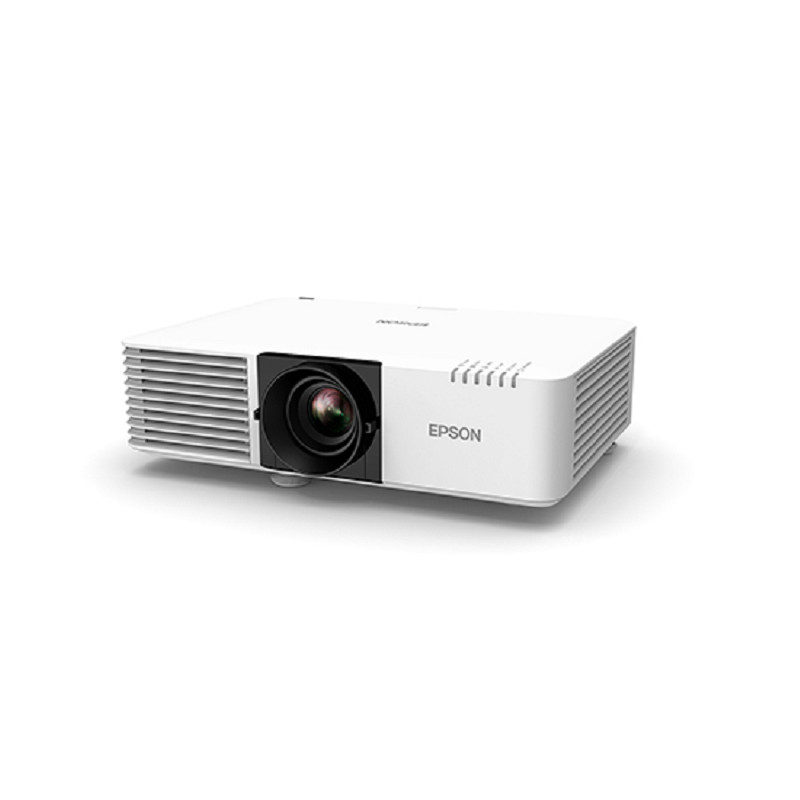

Epson EB-L520U - 5200 Lumens, WUXGA (1920 x 1200) 3LCD Laser Projector

Reference:

Condition: New product

Manufacturer: Epson

Robust, compact WUXGA laser projector with 5,200 Lumens and Optical Zoom

Affordable EB-L520U laser projector delivers powerful performance for education and business applications.

WUXGA (Support 4K Enhancement), 5200 Lumens, 2.500.000:1, Laser Diode, 2 Comp IN/1 Comp OUT, 2 HDMI, Sound Output 10W, RS-232C, USB Type-A/B, LAN (RJ45), Wifi Option (ELPAP11), HDBaseT, N/A Miracast, Weight 7.7 kg

Warning: Last items in stock!

Rp‎ 61.725.000,00 tax excl.

Brightness (Lumens)

Native Resolution

Lightsource

Aspect Ratio

Color

White

More info

OVERVIEW

Higher Energy Efficiency & Eco-friendly

New laser diode and optical parts quality improvement ensure improved light source output while reducing electricity consumption and other natural resources during use.

original?use=productpictures&assetDescr=image

Split Screen Function

Supports up to 4 split screens. Connect up to 4 devices simultaneously to share screen and accommodate better information sharing.

Supports 16:6 Wide Screen Setting

Wide and large screen display ensuring optimal visibility, regardless of where you are seated.

Compatible with the Epson Wireless Presentation System**

Improve productivity and deliver interactive meeting styles at an affordable price

original?use=productpictures&assetDescr=image

What's In The Box:

Power Cable
Remote Control (with 2x AA Battery)
User Guide

SPECIFICATIONS

Projection Technology:

Projection Technology:RGB liquid crystal shutter projection system (3LCD)

Connectivity:

Network:
Wired LAN RJ45 x 1 (100Mbps)
Built-in Wireless: N/A
Optional Wireless: ELPAP11
Analog RGB Input:D-Sub 15Pin: 2
Digital Input:
HDMI: 2 (HDCP 2.3)

HDBaseT: 1 (HDCP 2.3)
Audio Input:Stereo Mini Jack: 2
Audio Output:Stereo Mini Jack: 1
Control I/O:RS-232C: D-Sub 9pin x 1
USB Input:
USB Type A: 1 (For PC Free, Firmware Update and Copy OSD Settings)
USB Type B: 1 (For mouse, K/B, control, firmware)
Analog Video Output:D-Sub 15Pin: 1
Digital Video Output:N/A

Contrast Ratio:

Contrast Ratio:Over 2,500,000:1

Screen Size (Projected Distance):

Zoom : Wide:50" - 500" [1.44 - 14.76 m]
Zoom : Tele:50” - 500” [2.35 - 23.84 m]

Geometric Correction:

Vertical/Horizontal Keystone:±30º / ±30º
Projection Orientation:360º Free

Operating Temperature:

Single Use:
Low Altitude (0 - 2,286m/7,500ft): 0 - 45 °C <32 - 113 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 40 °C <32 - 104 °F>
20% - 80% Humidity, No Condensation
Multi-projection Use:
Low Altitude (0 - 2,286m/7,500ft): 0 - 40 °C <32 - 104 °F>
High Altitude (Over 2,286m/7,500ft to 3,048m/10,000ft): 0 - 35 °C <32 - 95 °F>
20% - 80% Humidity, No Condensation

Operating Altitude:

Operating Altitude:
Over 1,500m/4,921ft with High Altitude Mode: 0 - 3,048m (0 -10,000ft)

Start-Up Period:

Start-Up Period:8 sec (Epson Logo); Warm-up Period: 30 sec
Quick Start-Up:Less than 5 seconds (Display)

Cool Down Period:

Cool Down Period:Instant Off

Internal Speaker(s):

Sound Output:10W Monaural

Direct Power On/Off:

Direct Power On/Off:Yes

Weight:

Weight:Approx. 7.7kg

Air Filter:

Type:Electrostatic Filter
Maintenance Cycle*4:20,000 hours (Normal) / 30,000 hours (Extended)

Fan Noise:

Fan Noise (Normal / Eco):31dB / 23dB

Dimension Excluding Feet:

Dimension Excluding Feet (D x W x H):304 x 440 x 122 mm

Brightness:

White Light Output (Normal / Extended):5,200lm / 3,640lm
Colour Light Output:5,200lm
Light Output (Center):5,600lm*

Wireless Specification (Using Optional ELPAP11):

Supported Speed for Each mode :
Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps*3
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 72.2 Mbps*3
IEEE 802.11a (5GHz): 54 Mbps*3
IEEE 802.11n (5GHz): 150.0 Mbps*3
IEEE 802.11ac (5GHz): 325Mbps*3

Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 72.2 Mbps*3
IEEE 802.11a (5GHz): 54 Mbps*3
IEEE 802.11n (5GHz): 150.0 Mbps*3
IEEE 802.11ac (5GHz): 325Mbps*3

Supported Mode : Infrastructure, Access Point(Wi-Fi Direct)
Supported Security Type:
Infrastructure:
- OPEN,
- WPA2/WPA3-PSK,
- WPA2/WPA3-EAP

Supported EAP type:
PEAP, PEAP-TLS, EAP-TLS, EAP-Fast

Access Point(Wi-Fi Direct):
WPA2-PSK(AES)

Wireless Specification (Screen Mirroring):

Supported Speed for Each Mode:
Infrastructure:
IEEE 802.11b (2.4GHz): 11 Mbps*3
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 72.2 Mbps*3
IEEE 802.11a (5GHz): 54 Mbps*3
IEEE 802.11n (5GHz): 150.0 Mbps*3
IEEE 802.11ac (5GHz): 325Mbps*3

Access Point(Wi-Fi Direct):
IEEE 802.11g (2.4GHz): 54 Mbps*3
IEEE 802.11n (2.4GHz): 72.2 Mbps*3
IEEE 802.11a (5GHz): 54 Mbps*3
IEEE 802.11n (5GHz): 150.0 Mbps*3
IEEE 802.11ac (5GHz): 325Mbps*3

Supported Mode:Infrastructure, Access Point(Wi-Fi Direct)
Supported Security Type:
Infrastructure:
OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP

Supported EAP type:
PEAP, PEAP-TLS, EAP-TLS, EAP-Fast

Access Point (Wi-Fi Direct): WPA2-PSK(AES)

Specifications of Main Parts:

LCD:
Size: 0.67" (C2 Fine)
Resolution: WUXGA
Aspect Ratio: 16:10

Lightsource:
Type: Laser Diode
Life*1: 20,000 hours (Normal) / 30,000 hours (Extended)

Projection Lens:
Type: Optical Zoom (Manual) / Focus (Manual)
F-Number: 1.50 – 1.70
Focal Length: 20 – 31.8 mm
Zoom Ratio: 1.0 - 1.60
Throw Ratio:1.35 – 2.20 (Wide - Tele)

Power Supply Voltage:

Power Supply Voltage:100 - 240 V AC ±10%, 50/60 Hz

Power Consumption (220 - 240V):

Laser Diode ON (Normal / Extended):293 W / 223WStand By:(Normal/Eco): 2.0W / 0.3W
