Maxhub UC-M40 - 360° All-in-One Camera

Reference: KSS-UC-M40

Condition: New product

Manufacturer: Maxhub

360° Field Of View; 4 x 5MP Camera; 4 mic mic array

Warning: Last items in stock!

Rp‎ 12.709.500,00 tax excl.

More info

MAXHUB UC M40
360° All-in-One Camera

MEETING IS BELIEVING

Be seen. Be heard. Be amazed by the all-in-one conference camera that tracks every face or follows every word in small to medium-sized spaces.

Compact design.
Expansive versatility.

Style meets substance in a sleek metal design that combines easy portability with robust capability and intuitive controls and displays. From one-tap mode switching to the LED voice location indicator, the UC M40 turns even challenging spaces into productive meeting places.

360° coverage.
Minimal distortion.

Communication is more direct, and collaboration more natural and immersive.

a0a8b66e9c4e4d1b9ca69b55f48e629e

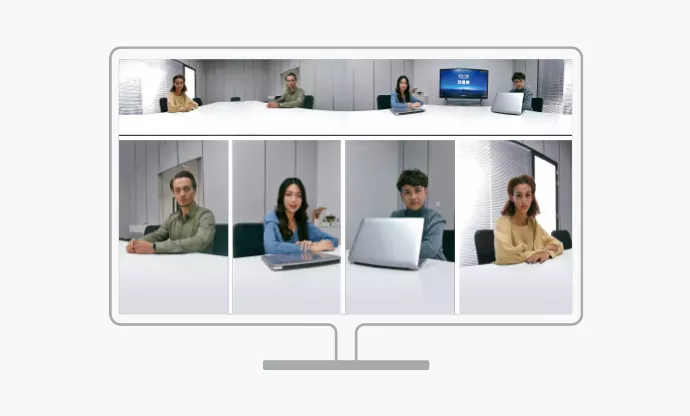

360° panoramic wide-angle view

Even if you’re seated to the side, you’ll be front and center on the screen.

016131589c3a4ec99949b275d6e83069

5MP 4-lens camera

The UC M40’s 4-lens 360° super wide-angle camera captures every participant’s face directly, without fisheye distortion.

All in the palm of your hand.

The UC M40 integrates a 360° camera, speakers, and voice-tracking microphones in a design as portable as it is stylish.
Just as impressive: The camera requires no external devices or time-consuming setup efforts. User satisfaction is built right in.

Ready when you are

Plug in the USB and start your meeting. Operating in Standalone Mode, the UC M40 provides full performance right out of the box.

Free of software installation

There’s no software to install, no complicated settings to configure. Choose your collaboration scenario with a simple tap, and the intelligent speaker-tracking technology and 360° camera will take it from there.

AI auto-tracking technology | Two-direction simultaneous voice tracking

A More Precise Performance

Have special requirements for your meeting? Activate Professional Mode and adjust a wide variety of settings, from camera angles to custom display layouts and auto-framing settings.

Towering performance on every platform.

MAXHUB collaboration technology is compatible with all popular video conferencing applications. Whichever platform you prefer, the UC M40 will be your conference camera of choice.

Microsoft Teams
Cisco Webex
Zoom
Skype

SPECIFICATIONS

Camera

Image Sensor : 1/2.7" CMOS
Effective pixels : 5M
Maximum frame rate : 2560H x 1440V @30fps
Number of Lens : 4
Focal length : 2.49mm
Aperture : 2.5
Field of view : 140°( D ) , 111°( H ) , 85°( V )
Output resolution : MJPG:4992*928@30、1920*1080@30、1280*720@30、640@360@30; YUY2:640*360
Video format : MJPG/YUY2
Features : Real-time Hyperstiching, 7 modes of video layout

Microphone

Quantity : Built-in 4 array omnidirectional microphones
Signal to noise ratio : 65 dB
Pickup range : 5m(radius)
Pickup angle : 360°
Response frequency : 200Hz to 8 kHz
Features : AI Voice Tracking

Speaker

Quantity : 1
Rated power : 3W
Sound pressure level : 75dBSPL@1m,1kHz
Signal to noise ratio : ≥75 dB
Distortion : ≤5%
Cavity volum : 0.35L
Frequency response range : 200Hz to 15kHz

USB Features

Operating System : Windows/Mac/Android/Linux
Hardware requirement : 2.4GHz Intel Core 2 Duo Processor or above| 2GB RAM or above
Colour System / Compression : YUY2/MJPG
USB : USB 2.0
USB Audio : Build-in Mic & Speaker
UVC : 1.1

Environment Condition

Operation Temperature : 0℃~40℃
Operation Humidity : 10%~90%RH

Compatible Application

Support Major VC Software : ZOOM, Microsoft® Teams, Google Meet, Google Hangouts, Cisco WebEx®, RingCentral, etc

Panocam Studio Specifications

Settings : Brightness, 3D De-Noise, Contract, Exposure, Flicker,
Function : Auto Detection, Auto Tracking
Field of View Adjustment : FOV-Top: Vertical+ 45°Up/ -15°Down FOV-Middle: Vertical± 30° FOV-Down: Vertical+ 20°Up/ -40°down
Video Layout Selection : Compose Mode, Manual Mode, Body-fit Mode, Grid Mode, Presentation Mode, Speaker Mode
Operating System : Win 10 or higher / Mac OS 10. 13 or higher (studio software)
Hardware Requirement :
Minimum hardware： Intel 4th generation I5 above, RAM of 4GB above Macbook Pro(2013) above, with RAM of 4GB or above Recommended hardware： Intel 7th generation I5 above, RAM 4GB above Mac Mini I3 (2018) above, RAM 8GB above

Power

Power supply : 12V 1A
Maximum power consumption : < 8W

I/O ports | Buttons | Indicators

DC IN : 1
USB Type-C(USB2.0) : 1
ModeButton : 1 (Video layout switch)
Soft Button : 1 (Mute/unmute)
Indicators : 8 (Sound Locator), 1 (Microphone status)

Physical Specifications

Camera Dimension L×H×D : 67.6×67.5×182.3mm
1pc Dimension (package)L×W×H : 235*165*91mm
15pcs Dimension (package)L×W×H : 515*255*505mm
Net Weight : 450g
1pc Gross Weight : TBD
15pcs Gross Weight : TBD

Package Contents

UC-M40 Camera : 1
Power Adaptor : 1
USB Cable : 1
User Guide : 1

Warranty

Camera : 3 years
Accessories : 1 years
