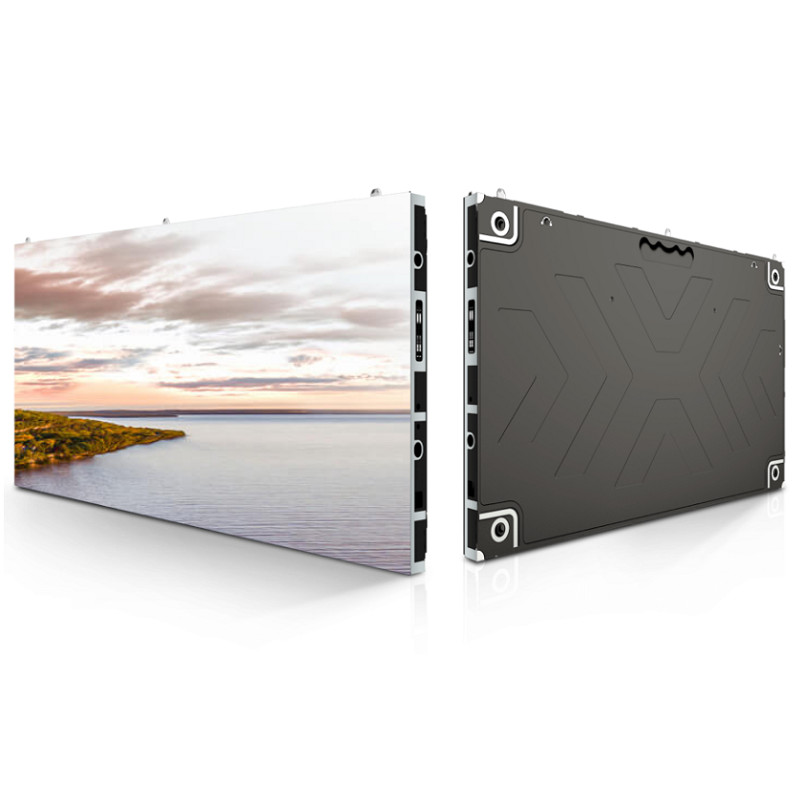

Maxhub M2712 - Custom LED Wall [ 480x270 pixels]

Maxhub M2725 - Custom LED Wall [ 240x135 pixels]

Reference:

Condition: New product

Manufacturer: Maxhub

MAXHUB LED M27 custom size. Space saving wall-mount installation | 31mm ultra-slim cabinet | 4,8kg light-weight design | 6500:1 high contrast | 3840Hz high refresh rate | 13bit high grayscale at low brightness | 170 degree viewing angle | Highly Integrated: 3-in-1 receiving card, hub board, and power supply pixel pitch Option : 1.2mm, 1.5mm, 1.9mm, 2.5mm

Warning: Last items in stock!

Rp‎ 141.413.045,00 tax excl.

Pixel Pitch

Panel Resolution

More info

MAXHUB
LED DISPLAY M27 Series

Enhance data visualization like never before, with a display built for incredible clarity. The M27 Series brings data and content to life in any monitoring center, command room, meeting space, or enterprise environment.

Sleek, stylish, and streamlined

A standardized cabinet ratio design makes the M27 Series perfect for a host of content-sharing use cases. The ultra-slim and lightweight structure takes up minimal space, without compromising on visual impact. Create a personalized display experience without wasting time, or space. The compact M27 delivers incredible results in a slim package.

16:9 cabinet ratio for impeccable pixel density	4.8 kg lightweight design
31mm ultra-slim cabinet	Space-saving wall-mounted installation

2K/4K/8K
visuals with minimal processing time or cost

Incredible Visuals

The stunning display, capable of impeccable high-resolution, can present a high-contrast, clear image, even in dull conditions. pixel-perfect clarity means image details as you’ve ever seen them before.

3-in-1 receiving card, hub board, and power supply
Minimal connection points to reduce failure rate caused by wire connections
Front-facing maintenance support, to make it easy to replace parts

Quick and easy installation

Installation couldn’t be simpler.

Avoid the need for professional installation with the ultimate quick splicing set-up, perfect for plug-and-play functionality. The M27 cabinet is built with simple setup and maintenance in mind, with no internal wiring or screws to worry about.

MAXHUB OS

Discover the true power of the M27 display in combination with MAXHUB OS. The built-in Android system supports data reading and writing, LAN screen sharing, and more. The proprietary control system can even adapt resolution to suit your needs, with support for PIP/PBP four-screen split under 4K controller. The MAXHUB OS is also compatible with third-party control systems.

Applications

Specifications

Physical Parameter

Model : M2725

Pixel Pitch : 2.5mm

Pixel Composition : SMD2020

Panel Resolution (WxH) : 240x135 pixels

Panel Dimension (WxHxD - mm) : 610x343x31mm

Panel Dimension (WxHxD - inch) : 24x13.5x1.2"

Panel Material : Die-Cast Magnesium, Aluminum Alloy

Panel Weight : 4.8kg (10.6lbs)

Maintenance Access : Front

Technical Parameter

Brightness : 550 nits

Viewing Angle : 170° / 170°

Color Gray Scale : 13-bit

Refresh Rate : 3.840Hz

Contrast Ratio : 6500:1

Power Consumption (Maximum) : 85watts/panel

Power Input : 100-240VAC 50/60Hz

LED Lifespan(typical) : ≥ 100.000hrs
